當前位置：首頁 > 產品總匯 > 防爆管件類 > BNG系列防爆撓性連接管（dⅡ、e）

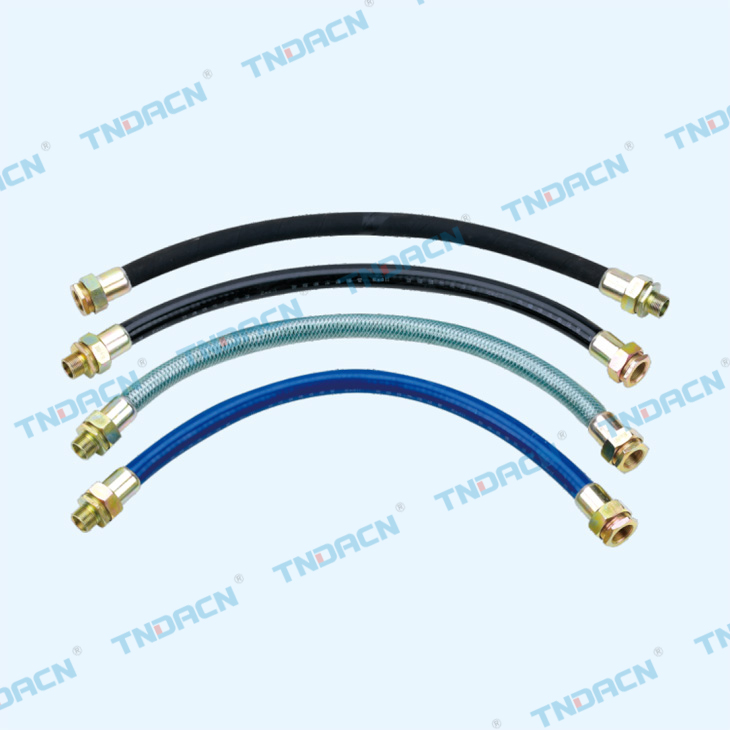

BNG系列防爆撓性連接管（dⅡ、e）

詳細信息

詳細信息

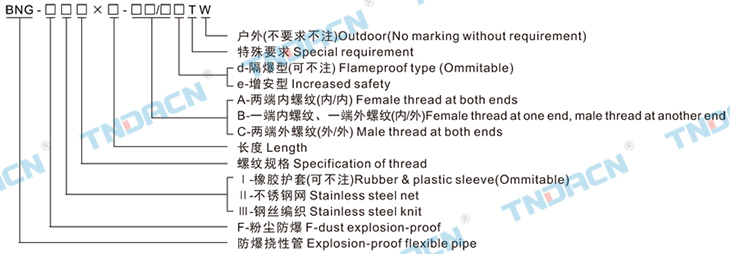

型號含義 Modelimplication

適用范圍 Applications

1. 1區、2區危險場所或20區、21區、22區危險場所；
2. ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3. 戶內、戶外(IP65、IP66*)；
4.應用于石油、化工、航天、軍工等場所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3. Indoor or outdoor(IP65,IP66*);
4.Widely using in the fields of oil, Chemical industry, spaceflight,war ind-ustry and so on.

產品特點 Features

BNG-Ⅰ(橡塑護套) Rubber sheld	BNG-Ⅱ(不銹鋼) Stainless steel	BNG-Ⅲ(鋼絲編織) Steel wire knit
1.本產品由優質碳鋼制成的內外螺紋接頭、金屬軟管外包PVC管等組成 1. It's composed of thread connectors and metal flexible pipe weared with PVC pipe, connectors are made of carbon steel with good quality.	1.本產品由優質不銹鋼制成的內外螺紋接頭、不銹鋼波紋管外不銹鋼網管等組成 1.this product is made up of the in-out thread joint of excellent stainless steel, stainless ripple pipe casing with stainless pipeline.	1.本產品由優質碳鋼制成的內外螺紋接頭、內襯鋼絲網管加強的橡膠管等組成 1.It's composed of inlet and outlet connector, rubber pipe that lined with stainless steel net pipe.
2.具有無毒無味、耐油、耐酸、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優 點。 2.It has no poison and taste, it's with oil, acid, corrosion, wearing and aging resistance water-proof flame-proof and good flexible functions.	2.具有耐油、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優點。 2.It's with oil corrosion-resistance aging wearing resistance, water and flame proof and good flexible function.	2.具有耐油、耐酸、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優點。 2.It's with oil corrosion-resistance aging wearing resistance, water and flame proof and perfect flexible function.

注：可根據用戶需要特殊加工長度及螺紋等。 The length and thread can be made on request.

主要技術參數 Main technical parameters

型號
Type

管通徑
Pipe diameter

接頭管螺紋(G")
Connecting pipe
thread

長度
Length

彎曲半徑下限
Min bend radius

防爆標志
Ex-mark

BNG-□15×700
BNG-□15×1000
BNG-□20×700
BNG-□20×1000
BNG-□25×700
BNG-□25×1000
BNG-□32×700
BNG-□32×1000
BNG-□40×700
BNG-□40×1000
BNG-□50×700
BNG-□50×1000
BNG-□70×700
BNG-□70×1000
BNG-□80×700
BNG-□80×1000
BNG-□100×700
BNG-□100×1000
BNG-□100×1400

15
15
20
20
25
25
32
32
40
40
50
50
70
70
80
80
100
100
100

G1/2"
G1/2"
G3/4"
G3/4"
G1"
G1"
G1 1/4"
G1 1/4"
G1 1/2"
G1 1/2"
G2"
G2"
G2 1/2"
G2 1/2"
G3"
G3"
G4"
G4"
G4"

700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
1400

80
80
110
100
145
145
180
180
210
210
250
250
350
350
400
400
500
500
500

Exd Ⅱ等效于
Ⅱ 2G Exd Ⅱ(歐標)

ExeⅡ等效于
Ⅱ2G ExeⅡ(歐標)

DIP A20等效于
Ⅱ1D ExtD A20(歐標)
