主要技術參數 Main technical parameters

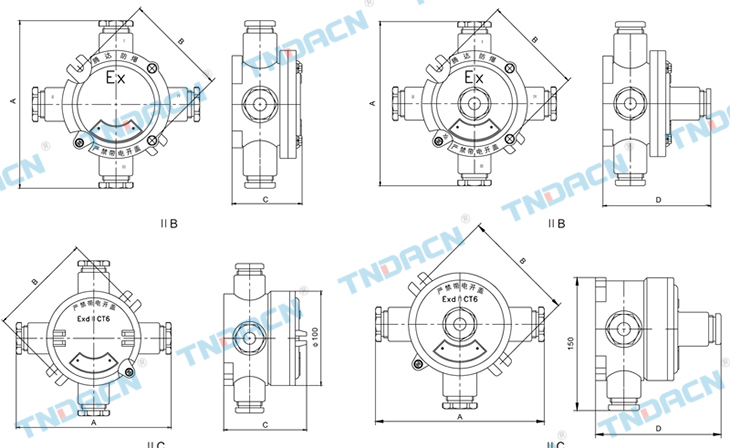

外形及安裝舉例 Outline and mounting example
ⅡB類、增安型接線盒外形尺寸 Dimension of ⅡB group, safety-incrteased type junction box
ⅡC類,接線盒外形尺寸 Dimension of ⅡB group junction box
電纜外徑(φ,mm) Cable's outer diameter |
管螺紋 (G) Pipe thread |
A | B | C | D | |
φ8~φ10 | 1/2 | 190 | 120 | 85 | 120 | |
φ8~φ14 | 3/4 | 190 | 120 | 85 | 120 | |
φ12~φ18 | 1 | 190 | 120 | 85 | 120 |
