詳細信息

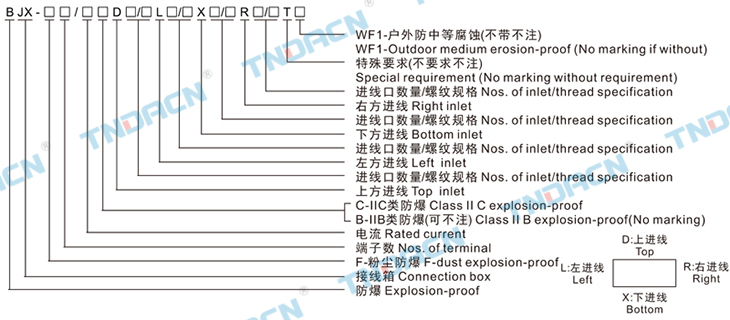

型號含義 Modelimplication
適用范圍 Applications
1. 1區、2區危險場所或20區、21區、22區危險場所；
2. ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3. 戶內、戶外(IP65、IP66*)；
4. 溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3. Indoor or outdoor(IP65,IP66*);
4. Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil, Chemical industry, spaceflight,war ind-ustry and so on.
產品特點 Features
1.殼體采用高強度鋁合金一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、
防爆性能優良，表面塑粉附著力強，具有良好的防腐能力，表面光潔，美觀大方；2.可根據用戶要求特制；
3.鋼管或電纜布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostaticspray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plasticpower adhesion ability with good anti-corrosion, the surface smooth, elegant appearance.
2. It can be made on request;
3. Wiring with steel tube or cable.
主要技術參數 Main technical parameters
*. 要求IP65， 需注明。 IP65 Requirements must be marked

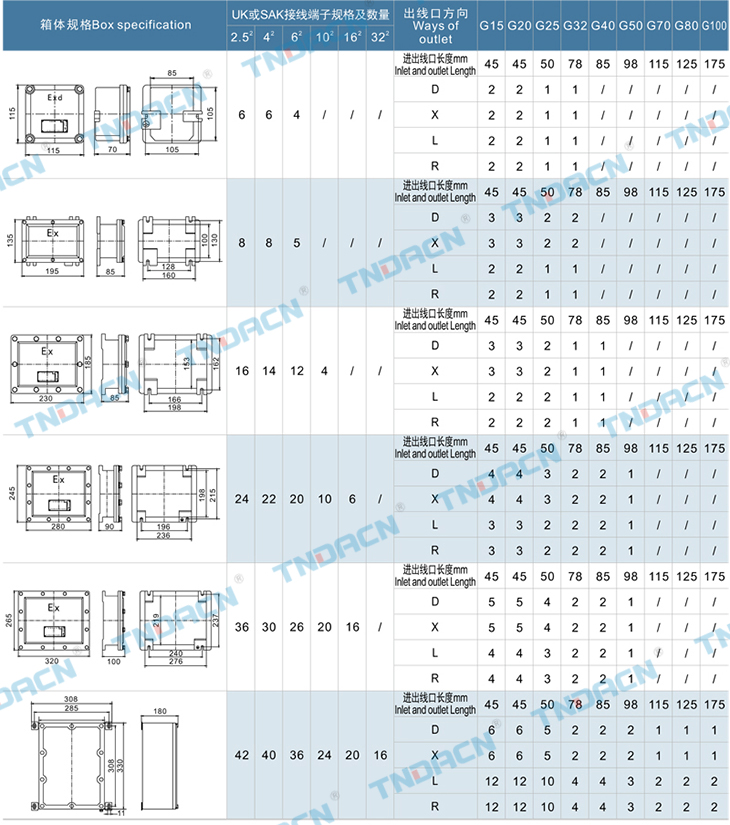

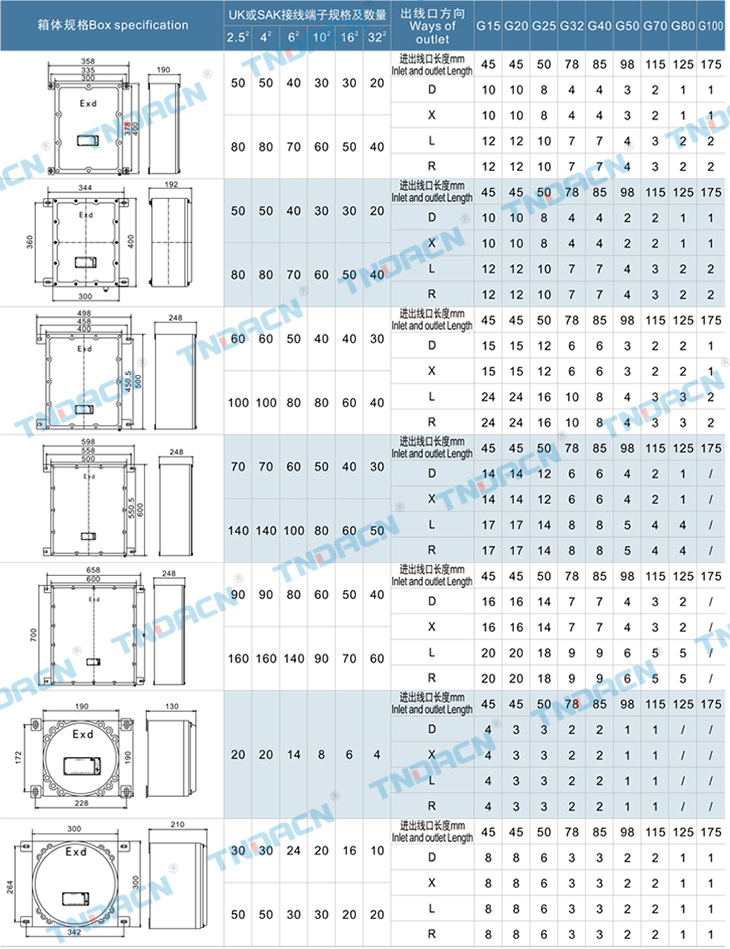

外形及安裝尺寸 Ouline & installation dimensions
