BYS51-F系列粉塵防爆防腐全塑熒光燈（DIP）

詳細信息

詳細信息

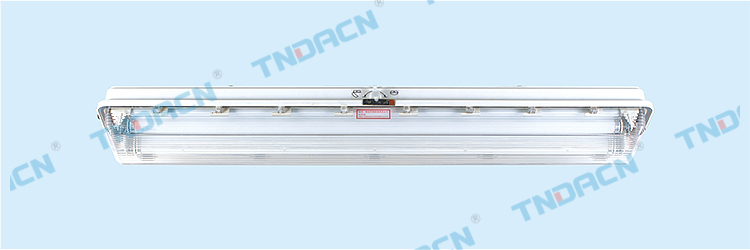

BYS51-F系列粉塵防爆防腐全塑熒光燈（DIP）

BYS51-F type dust explosion & corrosion-proof full plastic fluorescent lamp(DIP)

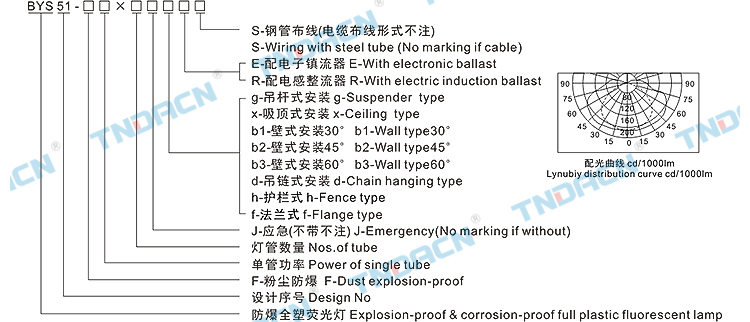

型號含義 Modelimplication

適用范圍 Applications

1.20區、21區、22區危險場所；
2.可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。

1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight, war ind-ustry and so on.

產品特點 Features

1.外殼采用高強度的SMC模壓成型，燈罩采用透光性能好、耐強沖擊的聚碳酸脂注塑成型；
2.外殼采用密封結構，具有了良好的防水、防塵防強腐蝕等性能；
3.內裝電子鎮流器為我公司特制的防爆鎮流器，具有短路和開路保護性能，針對燈管的老化效應和漏氣現象預防電路，使燈具能正常工作，且高效節能COSф≥0.98，具有寬電壓輸入，在電壓170～250V AC范圍內，均能保持恒功率輸出；
4.電子鎮流器配用燈管為普通T8燈管，降低了用戶的維修費用；
5.配電感鎮流器采用單腳快速瞬時啟動燈光；
6.可根據用戶要求配置應急裝置，當外界斷電時，燈具自動切換到應急照明狀態；
7.燈具內裝防爆開關，配置開蓋斷電鏈鎖裝置；
8.鋼管或電纜布線(鋼管布線時請注明)。
1.The enclosure is moulded by the high strength SMC. Lamp housing is made of polycarbonater, which has fine light transmittance and impact resistance properties.
2.It has sealing structure, which has ensured the great functions of water proof and dust proof.
3.Inner electronic ballast is our compny's special explosion-proof ballast, and it has protection functions of short circuit and oen circuit. For the phenomenons of tubes' aging effect and air leakage, it should have standby circuit in order to keep it working. The high energy saving is COSф ≥0.98,and it has the wide range of input voltage. It can keep contant power output within170V~250VAC.
4.In order to reduce the cost of customer’ s maintenance, we use the normal tube of T8 as the tube of electronic ballast.
5.The lamp, with electric induction ballast, is adopted the single pin to turn on instantly.
6.We can conform the customers' requirements to add an emergency device. If the power is cut off, it will be turned to emergency lighting automatically.
7. There is an explosion-proof switch in the interior, and it should be added interlock device for opening the cover, when the power is cut off.
8.Wiring with steel tube or cable.(Please specify wiring with steel tube.)

主要技術參數 Main technical parameters

功率 Power	電壓 Voltage	充電時間 Charging time	應急啟動時間 Time of emergency lighting	應急啟動時間 Time of emergency lighting	電纜外徑 Cable outer dia.(mm)	電纜入口 Cable inlet(G)
20×(1~2)(J) 40×(1~2)(J)	~220V DC6V*	24h*	0.3s*	90min*	φ8~φ14	3/4

防爆標志 Ex-mark	防護等級 Degree of protection	防腐等級 Erosion-proof-class
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標)	P65	WF2

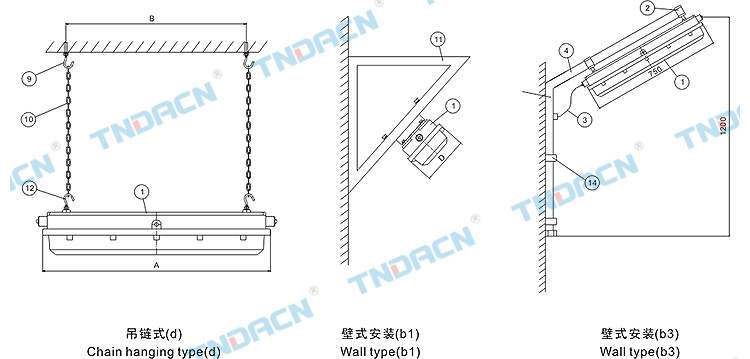

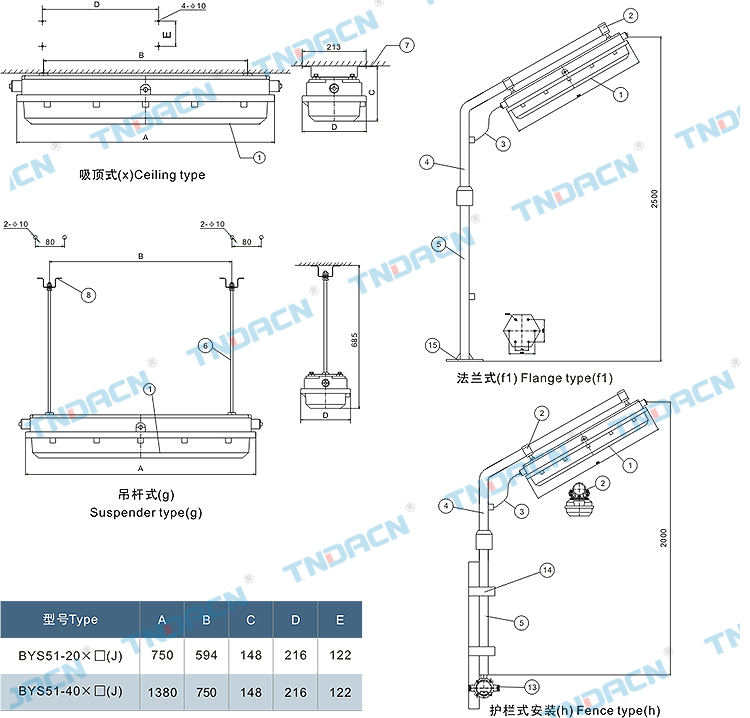

外形及安裝尺寸 Outline & installation dimensions

安裝配件表 Installation accessories and spare parts

序號 No.	名稱 Description	備注 Remark	序號 No.	名稱 Description	備注 Remark
1	燈具 Lamp		9	吊鉤 Hook
2	安裝管夾 Pipe clamp		10	鏈條 Chain
3	撓性連接管 Flexible connecting pipe	用戶自備Self-prepare	11	壁式安裝架 Wall mounting rack
4	平臺彎桿 Platform bend-rod type		12	吊環螺釘 Eye bolt
5	平臺管子 Platform tube		13	平臺燈接線盒 Platform Light Junction Box
6	連接管 Connecting pipe		14	U型管夾 U-tube clip	用戶自備Self-prepare
7	吸頂式安裝件 Ceiling mounting		15	底板 Bottom board
8	吸頂腳 Ceiling feet
