BXX51-F系列粉塵防爆動力檢修箱（DIP）防爆配電箱

詳細信息

詳細信息

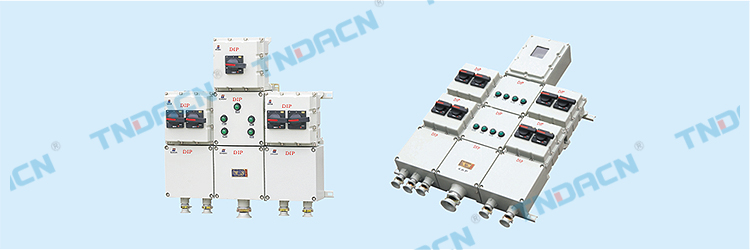

BXX51-F系列粉塵防爆動力檢修箱（DIP）

BXX51-F type dust explosion-proof power overhaul box(DIP)

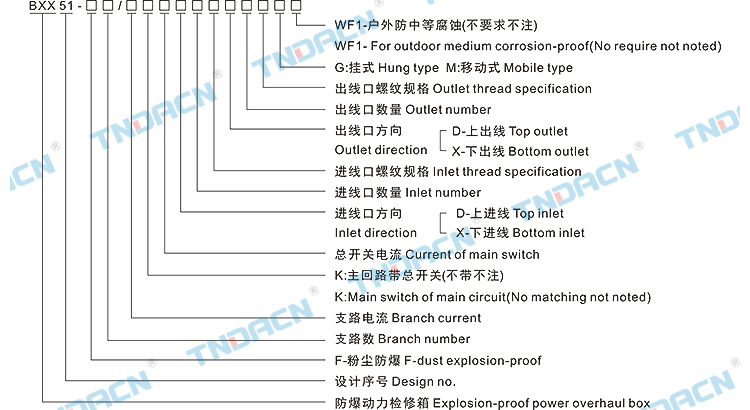

型號含義 Modelimplication

適用范圍 Applications

1.20區、21區、22區危險場所；
2.可燃性粉塵環境；
3.戶內、戶外(IP65、IP66*)；
4.溫度組別：T1~T4/T5/T6。
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T4/T5/T6.
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.內可裝元件為：C120高分?jǐn)嘈⌒蛿嗦菲?、NSX、CM1、DZ47塑殼斷路器及信號燈等，若需安裝其他特殊元件，可與公司工程技術人員聯系；
3.具有過載保護、短路保護、漏電保護等功能；
4.本產品為復合型模塊化結構，可根據擁護要求，對各回路進行自由組合；
5.可根據用戶要求特制，如加裝電涌保護器、電流表、電壓表、互感器等；常規產品操作手柄為工程塑料，操作手柄可根據要求加裝掛鎖；
6.鋼管，電纜布線均可。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Built-in C120and NSX, Cm1 circuit breaker and indicator lights, etc. Please contact our company's technical engingeers if you want to install other special components;
3.With overload, short-circuit and leakage protection functions;
4.This product is in the structure of combined modularization. Each branch circuit can be assembled freely according to the user's requests;
5.It can be made on user's request, including adding electric surge protector. ammeter, voltmeter and mutual inducor, etc. The operation handle of general products is made of engineering plastics, What's more, the handle can be addad padlock according to the request, the padlock handle of the mini circuit-breaker is made of highly intensive aluminium alloy;
6.Wiring with steel tube or cable.

主要技術參數 Main technical parameters

額定電壓(V) Rated voltage	額定電流(A) Branch current	支路數 Branch Number	進線口螺紋(G") Inlet's thread	出線口螺紋(G") Outlet's thread
380	60~100	2 4	2~3	1~11/2

防爆標志 Ex-mark	防腐等級 Erosion-proof-class	防護等級 Protection class
DIP A20 TA,T6/T5/T4 等效于 Ⅱ1D Ex tD A20 T6/T5/T4(歐標)	WF1	IP54 *IP55

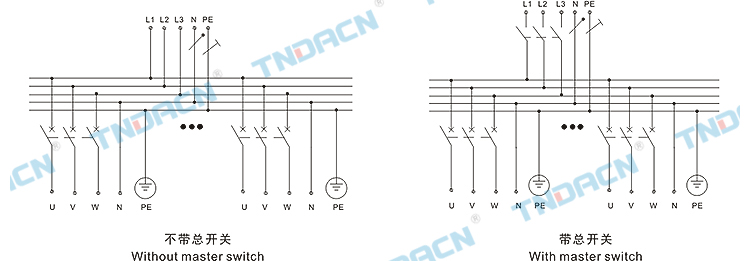

電氣原理圖 Electrical diagram

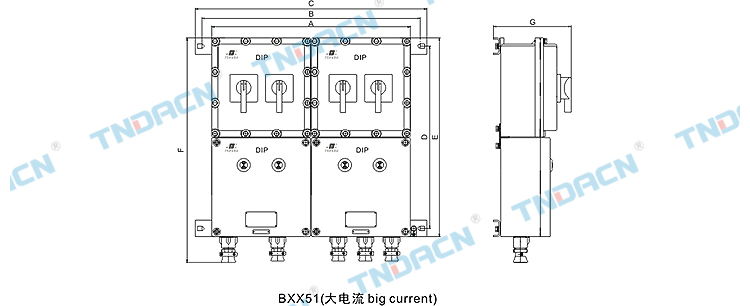

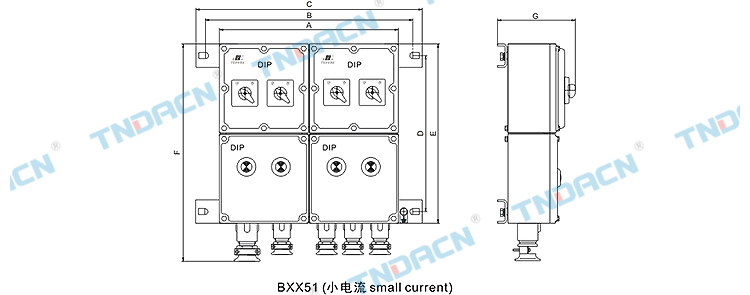

外形及安裝尺寸 Outines & installation dimensions

型號 type	A	B	C	D	E	F	G	型號 type	A	B	C	D	E	F	G
BXX51-3KXX BXX51-4KXX BXX51-6KXX BXX51-8KXX	400 600 600 600	422 617 617 617	455 647 647 647	385 385 575 575	400 400 600 800	470 470 680 900	165 165 165 165	BXX51-3KXD BXX51-4KXD BXX51-6KXD BXX51-8KXD	400 600 600 600	422 617 617 617	455 647 647 647	385 385 575 768	400 400 600 800	525 525 820 1020	165 165 165 165

型號 type	A	B	C	D	E	F	G	型號 type	A	B	C	D	E	F	G
BXX51-3KXX BXX51-4KXX BXX51-6KXX BXX51-8KXX	600 600 900 900	675 675 967 967	720 720 1008 1008	555 855 855 855	600 900 900 900	740 1050 1050 1350	275 275 275 275	BXX51-3KXD BXX51-4KXD BXX51-6KXD BXX51-8KXD	600 600 900 900	675 675 967 967	720 720 1008 1008	555 855 855 1155	600 900 900 1200	850 1160 1160 1470	275 275 275 275
