詳細信息

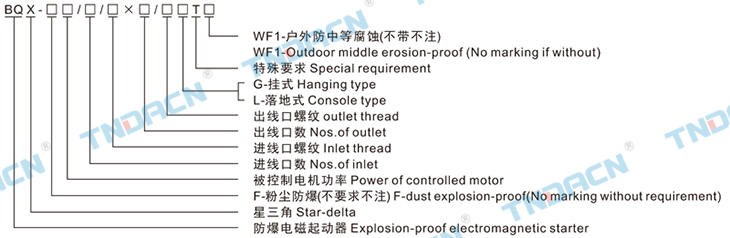

型號含義 Model implication
適用范圍 Applications
1. 1區、2區危險場所或20區、21區、22區危險場所；
2. ⅡA、ⅡB爆炸性氣體環境或可燃性粉塵環境；
3. 戶內、戶外(IP54)；
4. 溫度組別：T1~T4；
5.應用于石油、化工、航天、軍工等場所。
1.Enclosure is made of aluminium alloy or welded with steel
plate, surface is sprayed with plastic;
2.Built-in AC contactor, thermal relay, circuit-breaker, time
delay relay, cur r e n t I n s t r ument transformer, voltmeter,ammeter, transfer switch and indicator lamp;
3.With overload, short circuit, low voltage, short phase protectionfunctions;
4.It can be made on requests;
5.Wiring with steel tube or cable.
產品特點 Features
1.鋁合金外殼或鋼板焊接，表面噴塑；
2.內裝交流接觸器、熱繼電器、斷路器、時間繼電器、電
流互感器、電壓表、電流表、轉換開關及指示燈等；
3.產品具有過載、短路、欠壓、斷相等保護功能；
4.可根據用戶要求特制；
5.鋼管或電纜布線。
1.Enclosure is made of aluminium alloy or welded with steelplate, surface is sprayed with plastic;
2.Built-in AC contactor, thermal relay, circuit-breaker, time
delay relay, cur r e n t I n s t r ument transformer, voltmeter,ammeter, transfer switch and indicator lamp;
3.With overload, short circuit, low voltage, short phase protectionfunctions;
4.It can be made on requests;
5.Wiring with steel tube or cable.
主要技術參數 Main technical parameters
*.要求IP66，需注明。IP66 Requirements must be marked

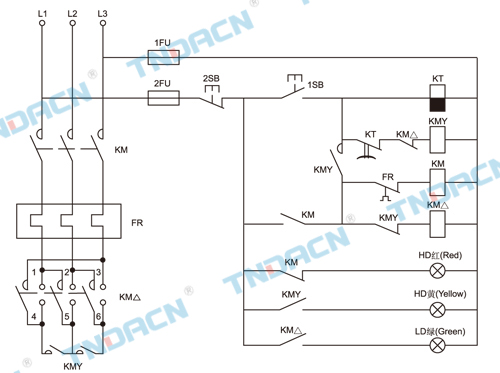

電器原理圖 Electric scheme

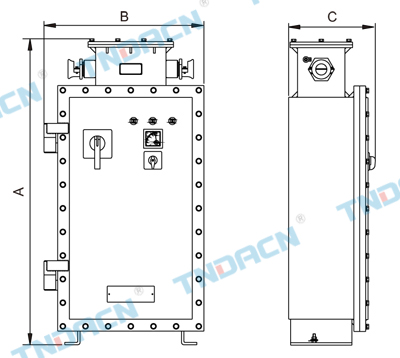

外形尺寸 Outline dimensions
