詳細信息

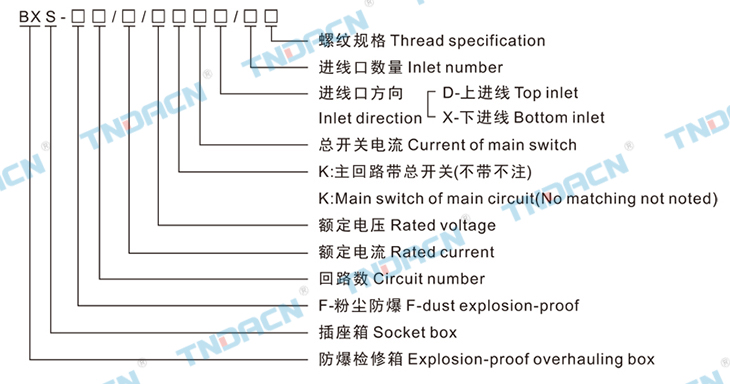

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2. 有多種規格的插座便于檢修用電源;
3. 帶總開關時，具有過載、短路等保護功能；
4. 也可加裝漏電保護功能，當漏電電流達到或超過規定值時，能自動跳閘，切斷線路，確保設備及人身安全；
5.電纜布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Many types of sockets are used for maintaining power source;
3.With overload,short circuit protection functions, if it is with master switch；
4.It can be addedd leakage protection device so that it can automatically trip to cut off the circuit to ensure the safety ofequipments and users, when the leaking current is or over the regulated value;
5.Wiring with cable.
主要技術參數 Main technical parameters

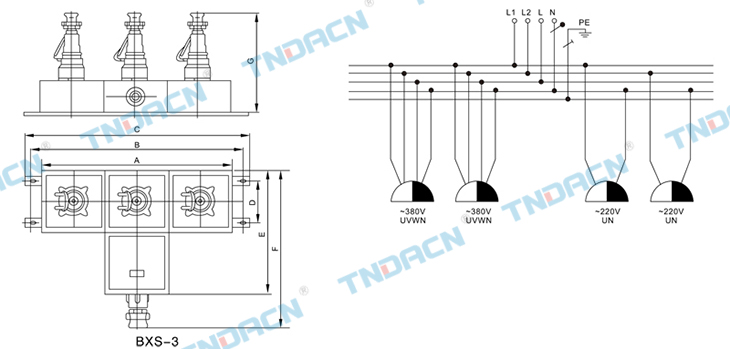

外形、安裝尺寸及電氣原理圖 Outine and installation dimensions & electric diagram
