當前位置：首頁 > 產品總匯 > 防水防塵防腐類 > FXS 系列防水防塵防腐電源插座箱

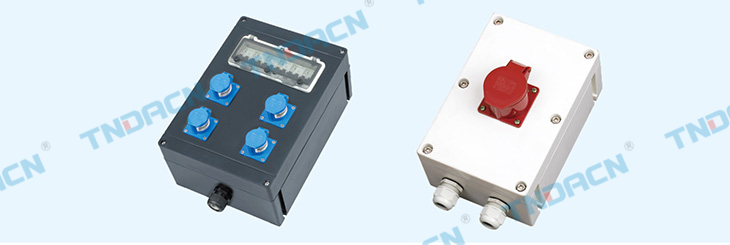

FXS 系列防水防塵防腐電源插座箱

詳細信息

詳細信息

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.強酸、強堿腐蝕，多水、多塵、潮濕環境。
4.必須選擇匹配的光源，用戶電源電壓波動范圍必須滿足國家標準要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withat and the corrosion of strong acid, strong alkali, and the environment of , more water, more dust and humidity.
4.They must choose illumination accordingly, the user's power voltage fluctant range must accord to the national standard.

產品特點 Features

1.鎮流器殼體按功率125W(含125W)以下和125W至400W分兩種尺寸，均采用鋁合金或不銹鋼材料焊接而成，結構輕巧，外
形美觀。
2.本產品抗強酸強堿鹽腐蝕，防水、防塵、防腐等級為F2，防護等級為IP65。
3.所有外露緊固件均采用不銹鋼，密封件采用硅橡膠，耐油、耐酸、耐堿、耐高溫。
4.與單盞燈具配套使用，兼做接線、分線箱。
5.內裝鎮流器技術參數同飛利浦、亞明，強烈建議用戶配置飛利浦、亞明光源。
6.可按用戶要求加裝功率補償器，補償后功率因數可達0.9以上。
1.The housings of ballast according to the two sizes of power up to 125W~400W which are made by aluminum or adiptingstainless steel matcrial, with light structure and beautiful appearance.
2.The products can withstand the corrosion of strong acid, strong alkali, salt. And have the function of waterproof andanti-corrosion class is F2, the protection class reaches IP65.
3.All the leakage fixers adopt stainless steel, the sealers adopt silicon rubber, which can withstand oil, acid alkalis, and hightemperature.
4.They are used with single lamp appliance, meanwhile, they are used as connecting box.
5.The technical parameter of inner ballast as compared to Philips and Yaming, we strongly users confesting the illuminantof Philips and Yaming.
6.They can be plug-installed power compensator, the power factor can be more than 0.9 after expiation.

主要技術參數 Main technical parameters

光源類型 Lamp type	額定電壓(V) Rated voltage	額定功率(W) Rated power	防護等級 Protection grade	防腐等級 Corrosion-proof grade	補償后 cosφ Compensatory cosφ	電纜外徑 Cable's outer dia.	進線口螺紋 (G") Inlet's thread
高壓汞燈 Hi-mercury vapor lamp	AC220V	≤400W	IP65	F2	E27 E40	φ10~φ14	G3/4"
金鹵燈 Metal halide lamp
高壓鈉燈 Hi-pressure sodium vapor lamp
